ONDULEUR SOLAIRE HYBRIDE INTELLIGENT GSL 6KVA/48V

Name: ONDULEUR SOLAIRE HYBRIDE INTELLIGENT GSL 6KVA/48V
SKU: 2456
Price: 1733325 NGN
Availability: InStock

Availability: In stock

₦1,733,325

code produit: PSC GSL6KVA

poids: 35.00kg

Dimensions: 408.00mm x 302.00mm x 128.00mm

Description

ONDULEUR SOLAIRE HYBRIDE INTELLIGENT GSL 6KVA/48V

Architecture du système de base

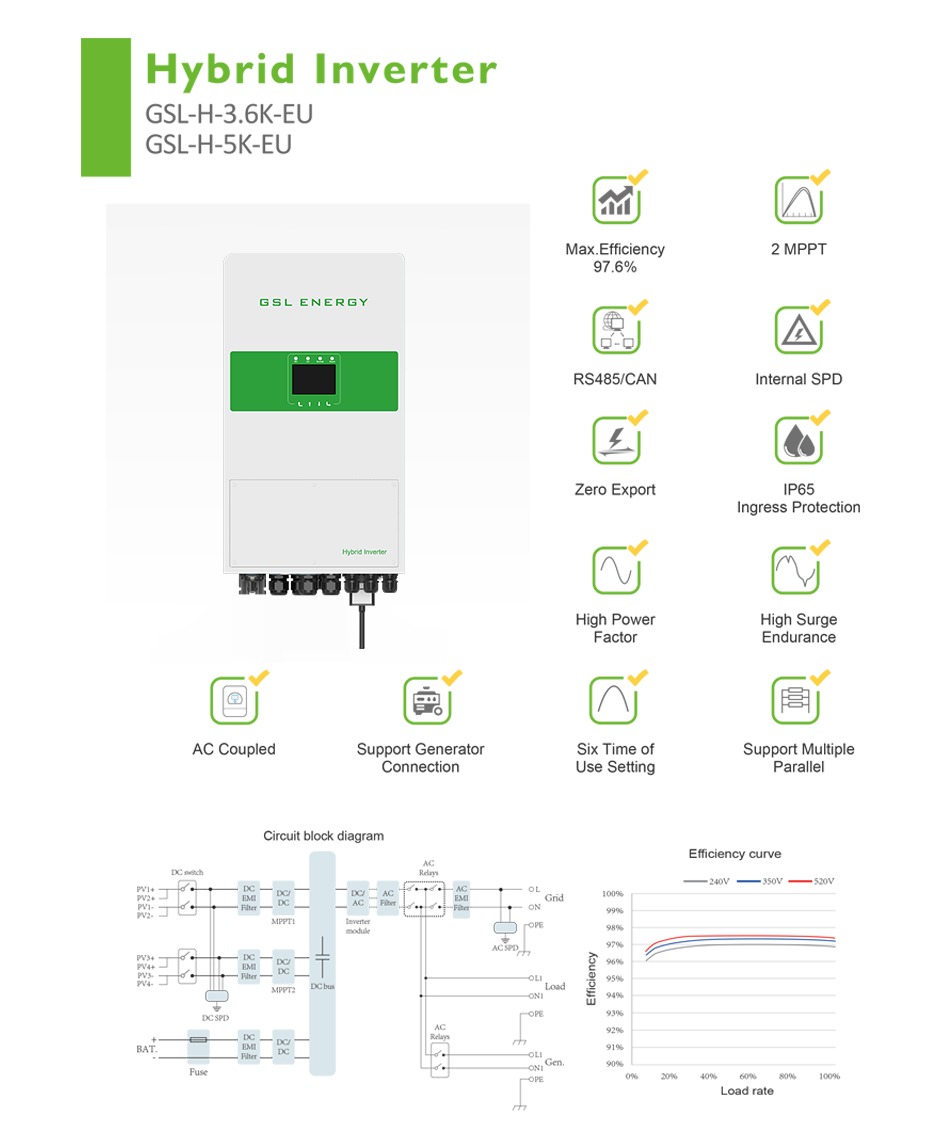

L’illustration suivante montre l’application de base de cet onduleur.

Il comprend également les appareils suivants pour avoir un système de fonctionnement complet.

– Générateur ou utilitaire

– modules photovoltaïques

Consultez votre intégrateur système pour d’autres architectures de système possibles en fonction de vos besoins.

Cet onduleur peut alimenter toutes sortes d’appareils à la maison ou au bureau, y compris les appareils à moteur tels que les réfrigérateurs et les climatiseurs.

Mode

Battery input data	GSL-H-3.6K	GSL-H-5.0K	GSL-H-8.0K
Battery Type	Lead-acid or Li-Ion	Lead-acid or Li-Ion	Lead-acid or Li-Ion
Battery Voltage Range (V)	40~60V	40~60V	40~60V
Max.Charging Current (A)	90A	125A	190A
Max.Discharging Current (A)	90A	125A	190A
Charging Curve	3 Stages/Equalization	3 Stages/Equalization	3 Stages/Equalization
External Temperature Sensor	Optional	Optional	Optional
Charging Strategy for Li-on Battery	Self-adaption to BMS	Self-adaption to BMS	Self-adaption to BMS
PV String Input Data
Max. Input Power	4680W	6500W	9880W
PV Input Voltage	370V (100V~500V)	370V (100V~500V)	370V (100V~500V)
MPPT Range (V)	125V-425V	125V-425V	125V-425V
Start-up voltage (V)	125V	125V	125V
PV Input Current (A)	11A+11A	11A+11A	18A+18A
No.of MPPT Trackers	2	2	2
No.of Strings Per MPPT Trackers	1/1	1/1	1/1
AC Output Data
Rated AC Output and UPS Power(W)	3600W	5000W	7600W
Power (off grid)	2 times of rated power,10S	2 times of rated power,10S	2 times of rated power,10S
AC Output Rated Current (A)	15.7A	21.7A	31.7A/33A
Output Frequency and Voltage	50/60Hz;220Vac/230Vac/240Vac (Single phase)		50/60Hz;180Vac-240Vac
Protection
PV Arc Fault Detection	Integrated
PV Input Lightning	Integrated
Anti-islanding	Integrated
PV String Input Reverse Polarity	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current	Integrated
Output Shorted	Integrated
Output Over Voltage	Integrated
Certifications and Standards
Grid Regulation	VDE-ARN4105,VDE0126,AS4777,NRS2017,G98,G99,EN50438
Safety Regulation	IEC62109-1,IEC62109-2
EMC	EN61000-6-1,EN61000-6-3
General Data
Operating Temperature Range(℃)	-25~60℃,>45℃ Derating	-25~60℃,>45℃ Derating	-25~60℃,>45℃ Derating
Cooling	Fan	Fan	Fan
Noise (dB)	<30	<30	<30

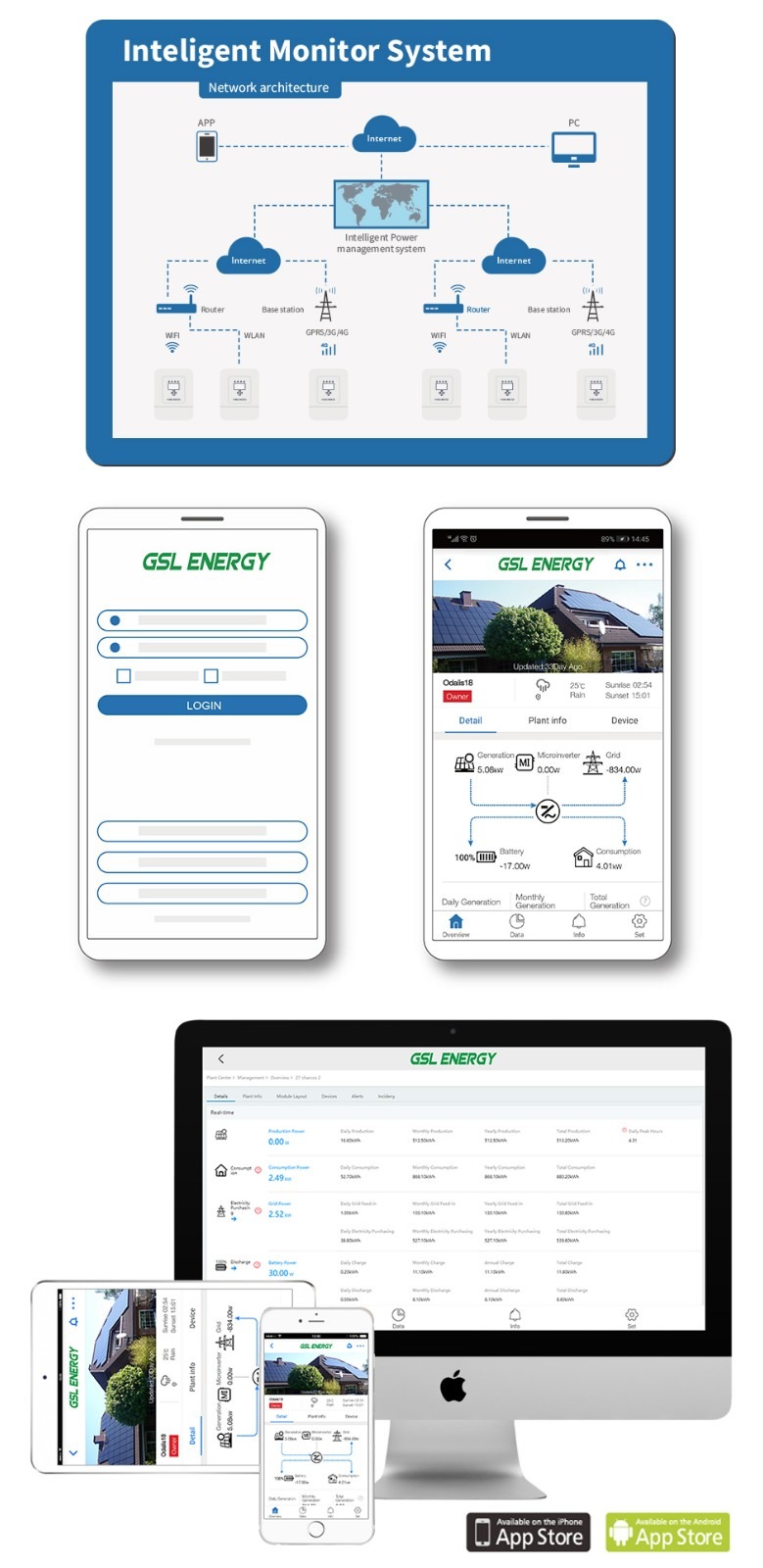

Communication with BMS	RS485;CAN	RS485;CAN	RS485;CAN
Weight (kg)	20.5KG	20.5KG	42KG
Size (LengthWidthHeight mm)	580×330×217mm	580×330×217mm	680×420×233mm
Degree	IP65	IP65	IP65
Installation Style	Wall-mounted	Wall-mounted	Wall-mounted
Warranty	5 years	5 years	5 years
